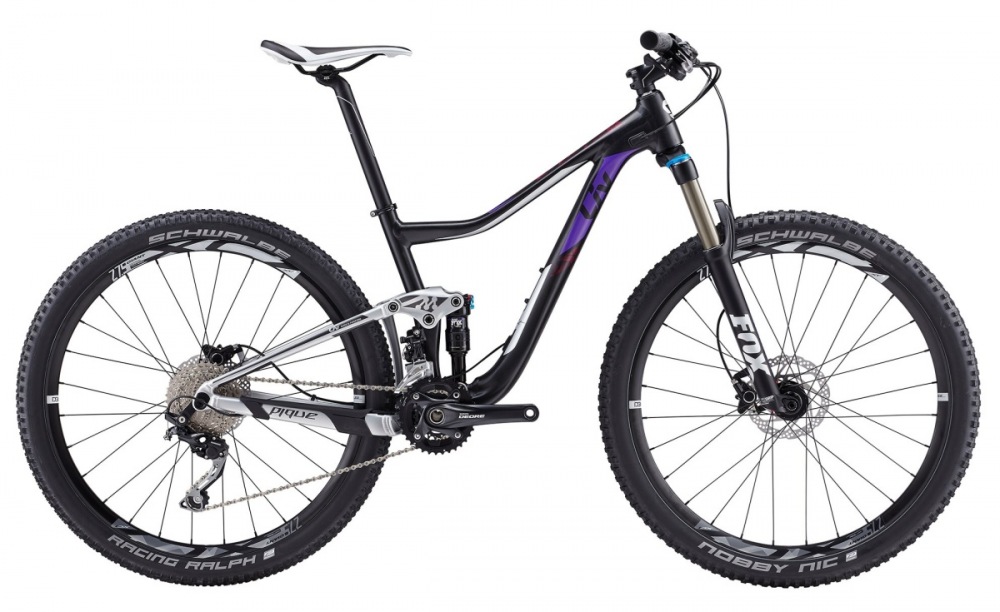

The Liv Pique is a versatile XC and trail bike with 27.5" wheel diameter and 120mm travel. A great partner for playful trails, singletracks, but also all-day wandering in the terrain, it can handle a demanding marathon without any problems. The time-proven Maestro suspension system provides almost bottomless travel, is sensitive to uneven terrain, all without unnecessary sway. A metric standard shock absorber with a Trunnion Mount is used here, the forces are transmitted by a carbon rocker made of one piece. A higher rigidity of the rear structure was achievedthanks to the wider boost fixed axis 12x148 mm, it provides better stability and support. The frame is adapted for internal bowden guidance and allows the use of a chain tensioner.
FRAME | |
Frame: Fork: Silencer: | ALUXX SL Aluminum suspension Maestro, stroke 120 mm FOX 34 Rhythm, FIT4 stroke 120 mm, 15x110 mm fixed axis (Boost), pillarOverDrive FOX Float Performance, Trunnion Mount |
COMPONENTS | |
Handlebars: Stem: Seat post: Seat: Pedals: | Giant Connect Trail 670mm (XS) / 730mm (S, M, L) Giant Connect Giant Connect, 30.9mm Liv Contact Forward - |
DRIVE | |
Sorting: Derailleur: Brakes: Brake levers: Cassette: Chain: Cranks: Center axis: | Shimano Deore, 2x10 speed Shimano Deore Shimano Deore Shadow+ Shimano M365, 160 mm discs Shimano M365 Shimano HG50, 11-36, 10 speed KMC X10 Shimano Deore, 36/22 gears Shimano Press Fit |
BIKES | |
Rims: Charges: Wires: Coats: | Giant XC-1 27.5 Wheelset Giant Tracker Boost 15x110mm, sealed bearings Giant Tracker Boost 12x148mm, sealed bearings I suck Schwalbe Nobby Nic 2.25 Performance, folding Schwalbe Racing Ralph 2.25 Performance, folding |
