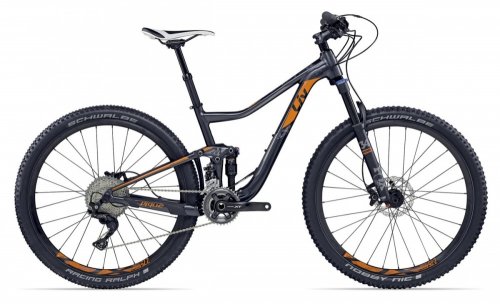

The Liv Pique is a versatile XC and trail bike with 27.5" wheel diameter and 120mm travel. A great partner for playful trails, singletracks, but also all-day wandering in the terrain, it can handle a demanding marathon without any problems. The time-proven Maestro suspension system provides almost bottomless travel, is sensitive to uneven terrain, all without unnecessary sway. A metric standard shock absorber with a Trunnion Mount is used here, the forces are transmitted by a carbon rocker made of one piece. A higher rigidity of the rear structure was achievedthanks to the wider boost fixed axis 12x148 mm, it provides better stability and support. The frame is adapted for internal bowden guidance and allows the use of a chain tensioner.
FRAME | |
Frame: Fork: Silencer: | ALUXX SL Aluminum suspension Maestro, stroke 120 mm FOX 34 Float Performance, GRIP damping stroke 120 mm, locking zhandlebar, 15x110 mm solid axle (Boost), OverDrive column FOX Float Performance, Trunnion Mount |
COMPONENTS | |
Handlebars: Stem: Seat post: Seat: Pedals: | Giant Contact Trail 690mm (XS) / 740mm (S, M, L) Giant Connect Giant Contact SL Switch, telescopic, 30.9 mm Liv Contact Forward - |
Sorting: Derailleur: Derailleur: Brakes: Brake levers: Cassette: Chain: Cranks: Center axis: | Shimano Deore XT, 2x11 speed Shimano Deore XT Shimano Deore XT Shadow+, 11 speeds Shimano M615, 160 mm discs Shimano M615 Shimano Deore XT, 11-42, 11 speed KMC X11EL-1 Shimano Deore XT, 36/24 gears Shimano PressFit |
BIKES | |
Rims: Charges: Wires: Coats: | Giant XC1 27.5 Wheelset |
