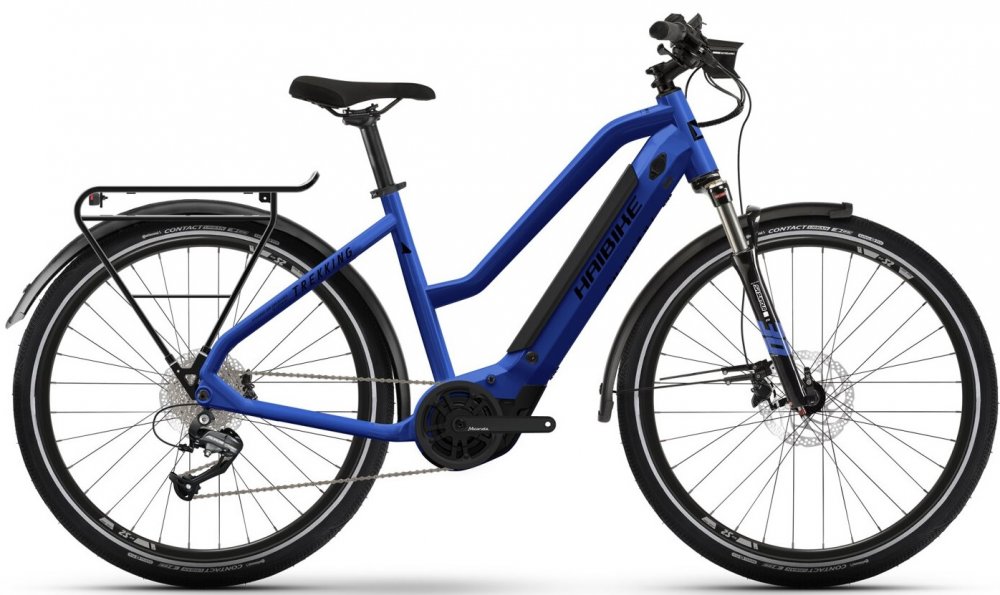

Haibike Trekking 4 Mid
Trekking electric bike equipped with Yamaha PW-TE engine and 500 Wh battery. Full description
Specification
Parameters
Comments (0)
Downloads (2)
The Haibike Trekking 4 Mid has an extremely comfortable frame geometry for easy mounting and is well equipped for longer journeys. With the extra lowered frame, getting on and off is very comfortable and safe. It is equipped with a carrier, lighting, mudguards and a side stand. With the Yamaha PW-TE engine, SR Suntour suspension fork, Shimano Altus M2000 shifting and 27.5'' wheels, you will enjoy a pleasant ride all day long. Adventure awaits!
- mid engine Yamaha PW-TE, 60 Nm, 25 km/h
- integrated Yamaha InTube 500 batteryWh
- Yamaha Side Switch display
- wheels with a diameter of 27.5"
- engine support up to 25 km/h (homologated for operation on roads)
| Engine | Yamaha PW-TE, 60Nm, 25 km/h |
| Battery | Yamaha InTube 500 Wh |
| Charger | Bosch compact charger 2A |
| Display | Yamaha Side Switch |
| Frame | Haibike, Trekking Yamaha i500/i400, Aluminium6061 |
| Fork | SR Suntour NEX E25, air, 63 mm |
| Converter | Aluminum, 36 teeth |
| Derailleur | Shimano, Altus M2000 |
| Sorting | Shimano, Alivio M3100, Trigger switch, 9 gears |
| Cassette | Shimano HG200, 11-36 teeth |
| Chain | KMC, e9S |
| Brakes | Alhonga, HT474, aluminium, 180mm /180mm |
| Front hub | Haibike, TheHub ++, 6-bolt standard |
| Rear hub | Haibike, TheHub ++, 6-bolt standard |
| Rims | Schürmann, Yak25, With Eyelets, Double Wall, Aluminum |
| Coats | Continental, Contact Urban, 55-584, 27.5 x 2.2 inches |
| Pedals | VP, E461, Aluminum, with Reflector |
| Flu | XLC, Comfortbo3 |
| Handlebars | XLC, Topflat, 720mm |
| Stem | XLC Alu, A-head |
| Head composition | Feimin, A-Head Tapered, Ball bearingCane Creek, Viscoset, Aluminum |
| Seat post | XLC, Aluminum, Patent, 31.6 mm |
| Seat | Selle Royal, Wave |
