Haibike AllTrail 5 29
Full-suspension e-bike with Yamaha PW-ST motor (70 Nm) and 630 Wh battery. Full description
Specification
Parameters
Comments (0)
Downloads (2)

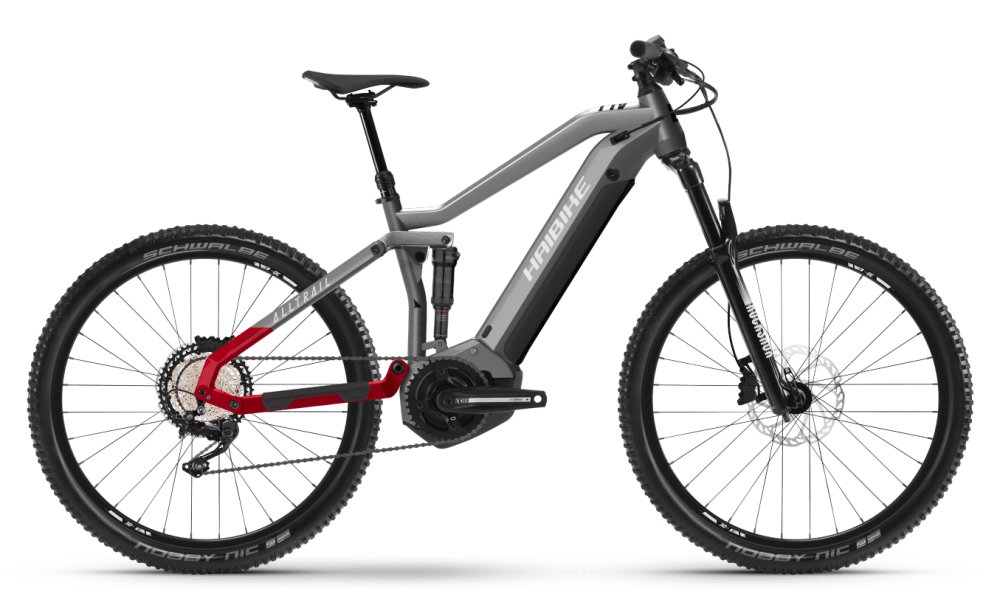

The full suspension bike Haibike AllTrail 5 offers comfort, a long range and the necessary traction in the terrain.
- the reliable Yamaha PW-ST engine is a guarantee of optimal support
- The 630 Wh battery ensures sufficient range even on longer journeys
- RockShox 35 Silver air suspension fork with 120 mm travel
- Shimano Deore M6100 set
- Tektro Orion M745 disc brakes
| Frame: Fork: Silencer: | Aluminum AllTrail, stroke 120 mm, central motor, integrated battery RockShox 35 Silver, 120 mm travel, 15 x 110 mm thru axle RockShox Monarch R |
| COMPONENTS | |
| Handlebars: Stem: Seat post: Seat: Pedals: | Haibike TheBar +++, 780 mm Haibike Alu Haibike,telescopic, control from the handlebars, ø 31.6 mm Selle Bassano Reko R2 Freeride Pedal, Alu |
| DRIVE | |
| Sorting: Derailleur: Derailleur: Brakes: Brake levers: Cassette: Chain: Cranks: Center axis: | Shimano Deore M6100 - Shimano Deore M6100, 12-Speed Tektro Orion M745, 203/180mm Tektro Orion M745 Shimano DeoreM6100, 10-51T, 12-speed Shimano CN-M6100 Haibike TheCrank +++ - |
| BIKES | |
| Rims: Charges: Wires: Coats: | Rodi Tryp 30, double wall, 30 mm internal width Shimano MT400 Centerlock, front Boost fixed axle 15x110 mm Sapim Leader Schwalbe Nobby Nic 29" |
| HYBRIDTECHNOLOGY | |
| Engine: Control unit: Display: Battery: | Yamaha PW-ST, 250 W, 70 Nm Yamaha Side Switch Yamaha Side Switch InTube 630 Wh |
| OTHER | |
| Accessories: | Yamaha charger |
