  • Haibike Alltrack 5 27.5

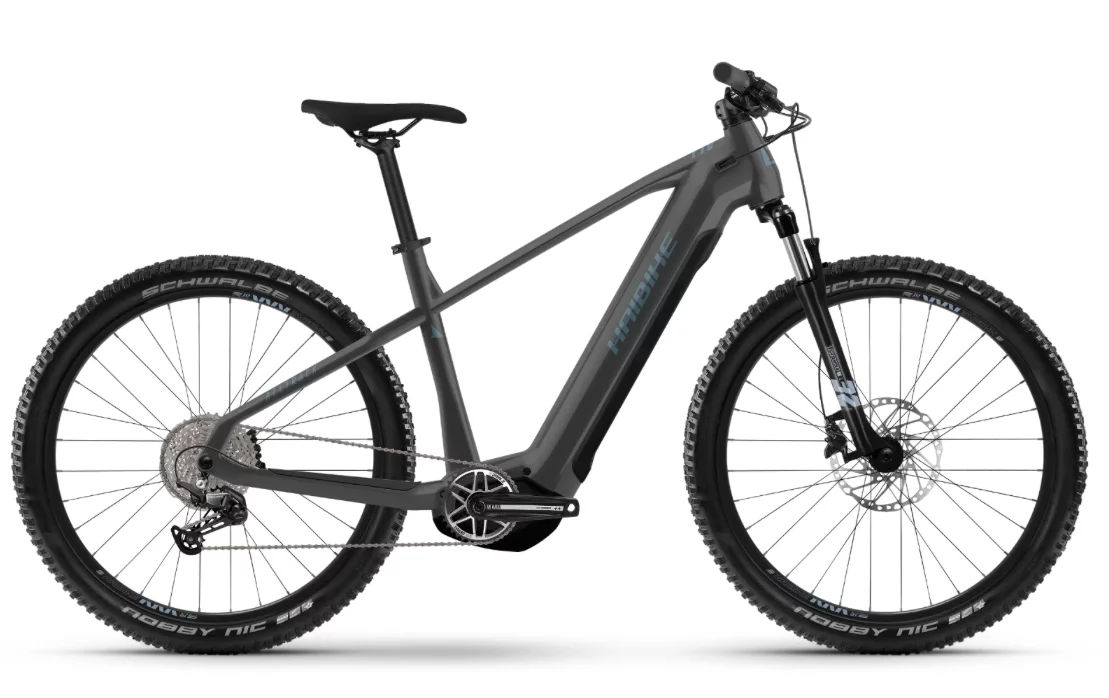

Haibike Alltrack 5 27.5

MTB e-bike equipped with Yamaha PW-S2 75 Nm motor and 720 Wh battery. Full description
Brand:
45104330
45104340
Code:
4054624143298
4054624143304
EAN:
in stock
3 - 5 days
Availability:

anthracite - S
in stock
2 065,85 €
anthracite - M
3 - 5 days
2 065,85 €
3 178,25 €
2 065,85 €
1 707,31 € without VAT
3 178,25 €
2 065,85 €
1 707,31 € without VAT
+
-
Specification Parameters Comments (0) Downloads (2)

On the road or on the trail? Uphill or downhill? With the Haibike Alltrack electric bike, you don't have to look for a compromise because it's universal. With a fork travel of 120 mm, sharp disc brakes, 27.5" wheels with excellent handling and a powerful Yamaha PW-S2 motor with a thin, integrated 720 Wh battery, you will have a lot of fun on and off the trail. Adventure awaits!

  • center motor Yamaha PW-S2, 75 Nm, 25 km/h
  • integrated Yamaha InTube 720Wh battery
  • Yamaha display, Side Switch, 1.7"LCD
  • wheels with a diameter of 27.5"
  • fork SR Suntour XCM32 120mm
  • 1x10 speed set (Shiamno Deore or Microshift Advent X)
  • engine support up to 25 km/h (homologated for operation on roads)
Engine Yamaha Yamaha PW-S2, 75 Nm, 25 km/h
Battery Yamaha InTube 720Wh
Charger Yamaha
Display Yamaha, Side Switch, 1.7" LCD, 7functions
Frame Haibike aluminum 6061, 27.5"
Fork SR Suntour XCM32, steel spring/oil, 120mm
Converter Steel, 38 teeth
Derailleur Shimano Deore RD-M4120 / Microshift Advent X RD-M6250M
Sorting Shimano Deore 1x10 / Microshift Advent X SLM9505 1x10
Cassette Shimano Deore 11/46, Microshift Advent X HG10411/48
Chain KMC, e10S
Brakes Shimano, MT200, 2-piston disc brake
Front hub Shimano, MT400-B, Centerlock
Rear hub Aluminum hub, Centerlock
Rims Rodi, Tryp 30, with eyelets, hollow rim, Aluminum
Coats Schwalbe, Nobby Nic Performance, 27.5" x 2.6"
Pedals Freeridepedal, Aluminum,with Reflector,
Flu XLC, MTB grips
Handlebars XLC, Topflat, 720mm
Stem XLC, Alu, A-head
Head composition Feimin, A-Head Tapered, Ball bearing
Seat post XLC, Aluminum, Patent, 31.6 mm
Seat XLC, MTB

Product parameters

Usage: univerzal
Wheel size: 27.5
Frame: Aluminium
Suspension: front
Travel: 120 mm
Brakes: disc
Gear: Shimano
Speed: 1x10
Motor: Yamaha PW-S2
Battery: 720 Wh
Engine position: middle
Torque: 75 Nm

Product comments

Nobody has commented on this product yet.

Add comment

Downloads

PDF Haibike eBikes manual
PDF Fazua Ride 60 manual
