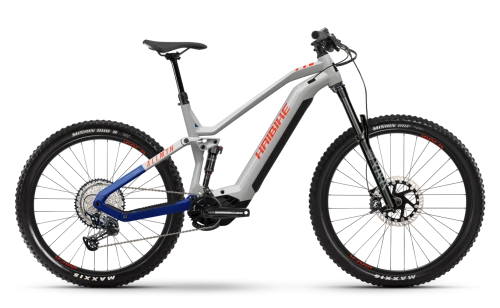

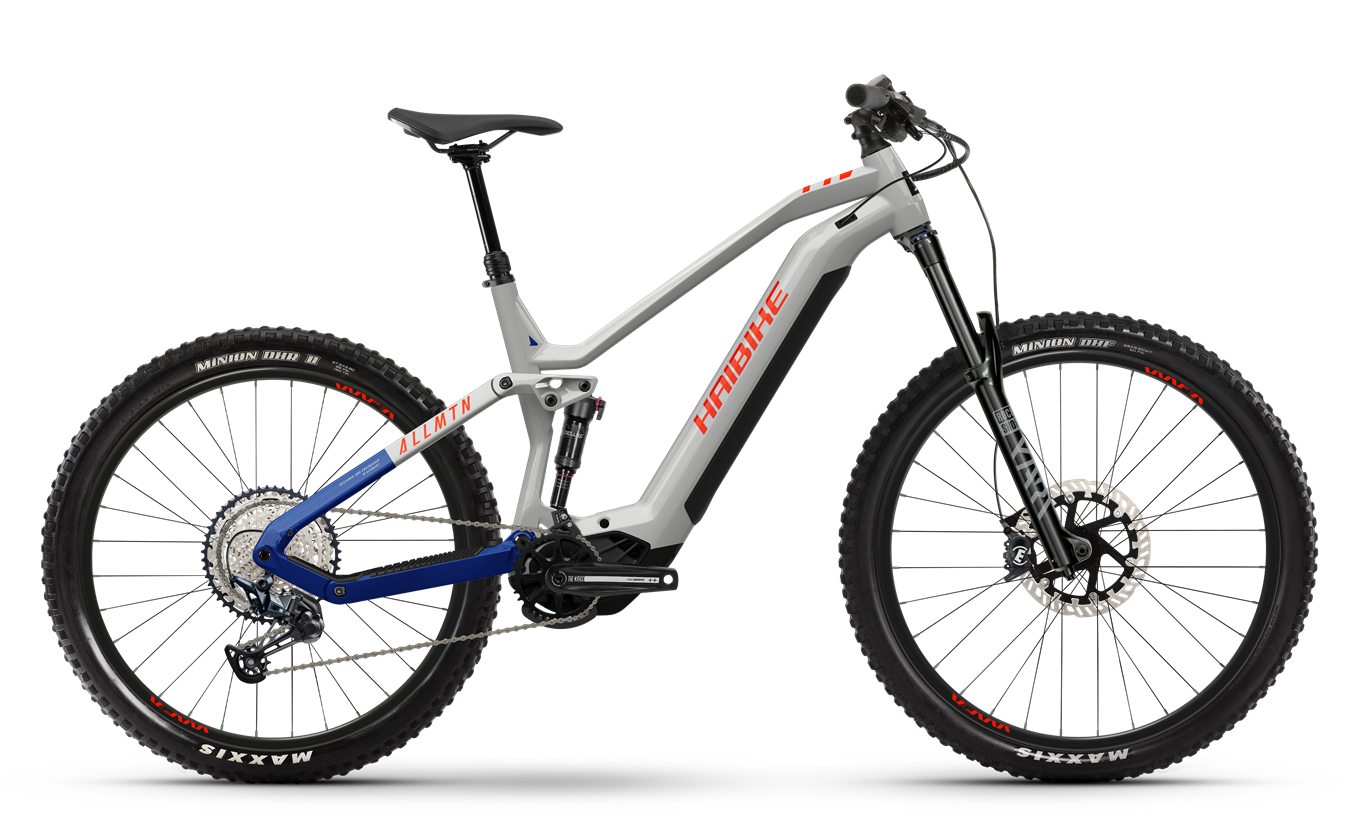

Haibike AllMtn is a full-suspension e-bike that is at home even on difficult terrain. Thanks to the height of 160 mm and the combination of 29~/27.5" wheels, it can handle all trails, exits and descents.
| FRAME | |
| Frame: Fork: Silencer: | Aluminum AllMtn, stroke 160 mm, mid-engine, integrated battery RockShox Yari RC, 160 mm travel, 15 x 110 mm thru axle RockShox Deluxe Select+, Trunnion |
| Handlebars: Stem: Seat post: Seat: Pedals: | Haibike TheBar +++, 780 mm Haibike TheStem +++, 31.8 mm Haibike, telescopic, handlebar control, ø 34.9 mm Fizik Terra Aidon X5-160 Freeride Pedal, Alu |
| DRIVE RockShox, Deluxe select plus | |
| Sorting: Derailleur: Brakes:/> Brake levers: Cartridge: Chain: Cranks: | Shimano SLX Shimano SLX, 12-Speed Magura MT5, MDR-P discs 203 mm Magura MT5 HC Shimano Deore, 10-51T, 12-speed Shimano Deore Haibike TheCrank +++ |
| BIKES | |
| Rims: Charges: Wires: Coats: | WTB ST i35 TCS, double wall, 35 mm internal width Haibike TheHub +++, in frontBoost solid axle 15x110 mm, rear 12 x 148 mm Sapim Race Maxxis Minion DHF 2 29 x 2.5" / Minion DHR 2 27.5 x 2.6" |
| HYBRID TECHNOLOGY | |
| Engine: Control unit: Display: Battery: | Yamaha PW-X3, 250 W, 85 Nm Yamaha Interface X Yamaha Interface X InTube 720 Wh |
| Accessories: | Yamaha charger |
 |
