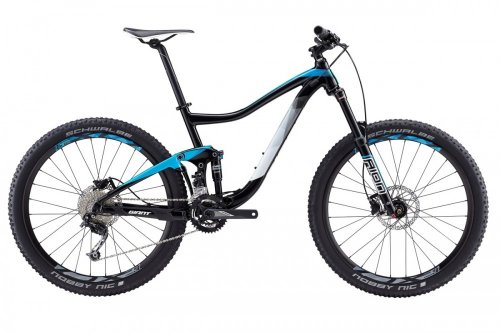

Legend, standard class, unrivaled standard for competition, it's all Giant Trance. A great partner for playful trails, singletrack, but also the whole day wandering terrain seamlessly handle enduro race. For the 2017 season, there was a complete reworking of the frame, the rear of the building is about 5 mm shorter front triangle 10 mm longer stroke and front fork has been increased by 10 mm to 150 mm. Newly used herein damper metric standard with fastening trunnion Mount of transferring carbon rocker made from one piece. Stiffer rear subframe has beenachieved through a wider boost fixed axle 12x148 mm, providing better stability and support. The rear building now accommodates a maximum dimension cloak to 27.5 x 2.6 ". The frame is designed for internal management Bowden and allows the use of chain tensioner. Flights reviewed Maestro suspension system provides almost bezedený stroke, is sensitive to uneven terrain, all without undue sway.
FRAME | |
Frame: Fork: | ALUXX SL Aluminum, Maestro system, stroke 140 mm, solid axle 12x148 mm (Boost) Suntour Aion LO-R, stroke 150 mm, solid axle 15x100 mm column OverDrive Suntour Unair LO-R, trunnion Mount |
COMPONENTS | |
Handlebars: stem: Seat Post: Seat: pedals: | Giant Connect Trail, 730 x 31.8 mm Giant Connect Giant Connect, 30.9 mm Giant Contact Neutral |
DRIVE | |
Sort by: Switches: Shifters: brakes: Brake Levers: Cartridge: Chain: Handles: Central axis: | Shimano Alive 2x9 speed Shimano Deore Shimano Deore Shadow Shimano M315, 180 mm discs Shimano M315 Shimano HG-400-9, 12-36, 9 speed KMC X9 FSA Comet converters 38/24 FSA |
rims: hubs: Wires: Tyres: | Giant XC-1 27.5 Wheelset Giant Tracker 15x100 mm, encapsulated bearings / Giant Tracker Boost 12x148 mm, encapsulated bearings Sapim Schwalbe Nobby Nic 2.25 Performance |
![]() |
Návod (kola Giant/Liv) |
