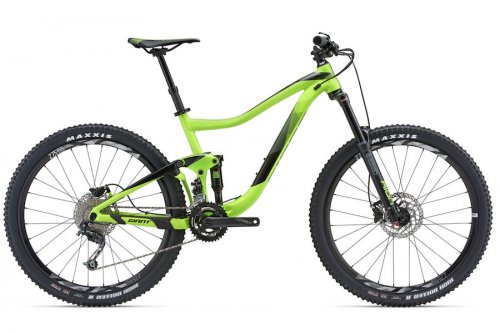

The legend, the etalon of the class, the unrivaled pattern for the competition, all this is Giant Trance. A great partner for playful tracks, singletracks, but also day-long walks through the terrain, can easily manage the enduro race. "Long and Low" geometry, a low and a long frame, offers natural driving that combines trail dexterity with sufficient stability and safety. Used here is a metric standard shock absorber with Trunnion Mount, the power transmits the carbon beam from one piece. The higher stiffness of the rear structure wasachieved thanks to the wider boost of the fixed 12x148 mm axis, providing better support. The rear structure now houses a casing with a maximum size of 27.5 x 2.6 ". The frame is designed for internal bowden guidance and allows the chain tensioner to be used. The proven Maestro suspension system provides an almost bottomless lift, is sensitive to terrain inequalities, all without unnecessary bumps.
FRAME | |
Frame: Silencer: | ALUXX SL Aluminum, Maestro system, stroke 140 mm, fixed axis 12x148 mm (Boost) Suntour Aion LO-R, stroke 150 mm, fixed axis 15x100 mm, OverDrive column RockShox Deluxe R, Trunnion Mount |
COMPONENTS | |
Handlebars: Stem: Sedlovka: Seat: Pedals: | Giant Connect Trail, width 780 mm Giant Connect Giant Contact Switch, telescopic, 30,9mm Giant Contact (Neutral) - |
DRIVE | |
Sorting: Derailleur: Derailleur: Brakes: Brake levers: Cartridge: Chain: Cranks: Center axis: | Shimano Alivio M4010, gears 2x9 Shimano Deore Shimano Deore Shadow Shimano M315, 180mm discs Shimano M315 Shimano HG400-9, 12-36 teeth KMC X9 FSA Comet,38/24 dental transducers FSA |
WHEEL | |
Rims: Hubs: Wire: Tires: | Giant XC-1 Wheelset, tubeless rims, 23 mm internal width Giant XC-1 Wheelset, fixed axes 15x100 mm and 12x148 mm (Boost), encapsulated bearings Sapim Maxxis High Roller II EXO TR 2.4, 60 TPI, tubeless |
![]() |
