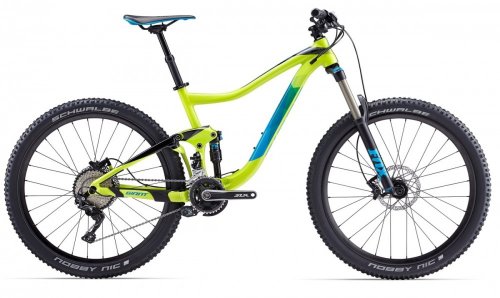

Legend, standard class, unrivaled standard for competition, it's all Giant Trance. A great partner for playful trails, singletrack, but also the whole day wandering terrain seamlessly handle enduro race. For the 2017 season, there was a complete reworking of the frame, the rear of the building is about 5 mm shortened top tube 10 mm longer stroke and front fork has been increased by 10 mm to 150 mm. Newly used herein damper metric standard with fastening trunnion Mount of transferring carbon rocker made from one piece. Stiffer rear subframe has beenachieved through a wider boost fixed axle 12x148 mm, providing better stability and support. The rear building now accommodates a maximum dimension cloak to 27.5 x 2.6 ". The frame is designed for internal management of the cables and allows to use chain tensioner. Flights reviewed Maestro suspension system provides almost bezedený stroke, is sensitive to uneven terrain, all without undue sway.
FRAME | |
Frame: Fork: | ALUXX SL Aluminum, Maestro system, stroke 140 mm, solid axle 12x148 mm (Boost) FOX 34 Rhythm, FIT4, stroke 150 mm, solid axle 15x110 mm (Boost), post OverDrive FOX Float Performance, trunnion mount Mount |
COMPONENTS | |
Handlebars: stem: Seat Post: Seat: pedals: | Giant Connect Trail, 730 x 31.8 mm Giant Connect Giant Contact SL Switch, telescopic, 30.9 mm - |
SHIFTING | |
Sort by: Switches: Shifters: brakes: Brake Levers: Cartridge: Chain: Handles: Central axis: | Shimano SLX, 2x11 speed Shimano SLX Shimano Deore XT Shadow + 11 speeds Shimano M615, 180 mm discs Shimano M615 Shimano SLX, 11-42, 11 speed Shimano HG-601 Shimano SLX, 2x11,36/26 converters, chain guide MRP 2 Shimano Press Fit |
WHEELS | |
rims: hubs: Wires: Tyres: | Giant TRX Carbon Giant Tracker Boost encapsulated bearings, 15x110 mm (front), 12x148 mm (rear) Sapim Schwalbe Nobby Nic 2.35 Performance Kevlar (front / Schwalbe Nobby Nic 2.25 Performance Kevlar (rear) |
![]() |
