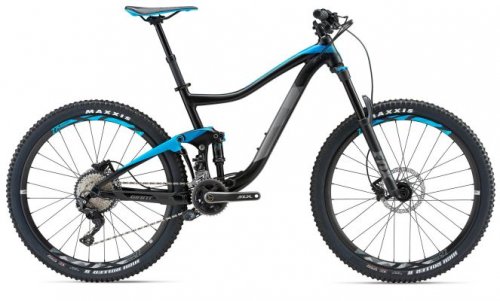

The legend, the etalon of the class, the unrivaled pattern for the competition, all this is Giant Trance. A great partner for playful tracks, singletracks, but also day-long walks through the terrain, can easily manage the enduro race. "Long and Low" geometry, a low and a long frame, offers natural driving that combines trail dexterity with sufficient stability and safety. Used here is a metric standard shock absorber with Trunnion Mount, the power transmits the carbon beam from one piece. The higher stiffness of the rear structure wasachieved thanks to the wider boost of the fixed 12x148 mm axis, providing better support. The rear structure now houses a casing with a maximum size of 27.5 x 2.6 ". The frame is designed for internal bowden guidance and allows the chain tensioner to be used. The proven Maestro suspension system provides an almost bottomless lift, is sensitive to terrain inequalities, all without unnecessary bumps.
FRAME | |
Frame: Silencer: | ALUXX SL Aluminum, Maestro system, stroke 140 mm, fixed axis 12x148 mm (Boost) FOX 34 Rhythm, stroke 150 mm, Grip Damper damping, Boost fixed axle 15x110 mm, OverDrive column FOX Float Performance, Trunnion Mount |
COMPONENTS | |
Handlebars: Stem: Sedlovka: Seat: Pedals: | Giant Connect Trail, width 780 mm Giant Connect Giant Contact (Neutral) - |
DRIVE | |
Sorting: Derailleur: Derailleur: Brakes: Brake levers: Cartridge: Chain: Cranks: Center axis: | Shimano SLX, 2x11 Shimano SLX Shimano XT M8000, Shadow + Shimano MT500, I spec II, 180mm discs Shimano MT500 Shimano SLX, 11-42 teeth Shimano SLX, 26/36, MRP 2X Guide tensioner Shimano PressFit |
WHEEL | |
Rims: Hubs: Wire: Tires: | Giant XC-1 Wheelset, tubeless rims, 23 mm internal width Giant XC-1 Wheelset, Giant Tracker Boost, encapsulated bearings, Boost fixed axes 15x110 and 12x148 mm Sapim Maxxis High Roller II EXO TR 2.4, 60 TPI,tubeless |
![]() |
