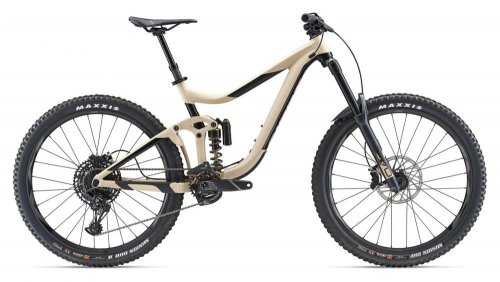

In the case of a classic Reign with a fork lift of 170 mm, there is Reign SX with a 180 mm fork and a spring damper. This is not a classic enduro, but rather a bike park special or a small hike. "Long and Low" geometry, a low and long frame, offers natural driving that combines trail dexterity and sufficient downhill stability. Used here is a metric standard shock absorber with Trunnion Mount, the power transmits the carbon beam from one piece. Higher stiffness rearthe construction was achieved thanks to the wider boost of the fixed 12x148 mm axis, providing better support. The frame is designed for internal bowden guidance and allows the chain tensioner to be used. The proven Maestro suspension system provides an almost bottomless lift, is sensitive to terrain inequalities, all without unnecessary bumps.
FRAME | |
Frame: Fork: | ALUXX SL Aluminum, stroke 160 mm, Maestro suspension, fixed axle 12x148 mm DVO Onyx SC, custom-tuned, stroke 180 mm, Boost fixed axle 15x110 mm, OverDrive column TWO Jade Coil, custom-tuned, Trunnion Mount |
COMPONENTS | |
Handlebars: Stem: Sedlovka: Seat: Pedals: | Giant Contact SL, 800 x 35 mm, 20 mm increment Giant Contact SL 35 Giant ContactSwitch, telescopic, 30.9 mm Giant Contact Neutral - |
DRIVE | |
Sorting: Tensioner: Derailleur: Brakes: Brake levers: Cartridge: Chain: Cranks: Center axis: | SRAM NX Eagle, gears 1x12 - SRAM NX Eagle SRAM Code R, discs 200/180 mm SRAM Code R SRAM NX Eagle, 11-50 teeth SRAM NX Eagle TruVativDescending 6k Eagle Dub, Boost, 32 teeth converter, Chain Guide MRP SXg Sram DUB, Press Fit |
WHEEL | |
Rims: Hubs: Wires: Tires: | Giant AM 27.5, 30 mm internal width Giant Tracker Performance Boost, fixed axes 15x110 mm and 12x148 mm, encapsulated bearings Sapim Maxxis Minion DHF 3C EXO TR, 27.5x2.5 WT, 60 TPI, tubeless Maxxis DHR II3C EXO TR, 27.5x2.4 WT, 60 TPI, tubeless |
![]() |
