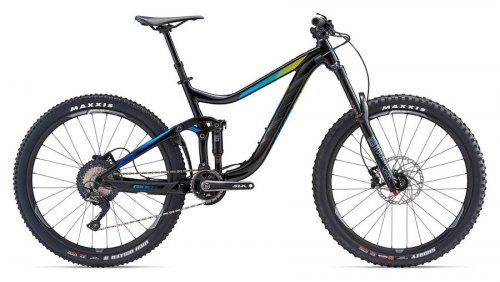

The Giant Reign is the ideal weapon for enduro racing and driving technical tracks. For the 2017 season, the frame has been completely reprocessed, the long and low geometry, the low and long frame, offers natural driving that combines trail dexterity and sufficient downhill stability. A new standard metric muffler with the Trunnion Mount attachment is used, and the power transmits the carbon beam from a single piece. The higher rigidity of the rear structure was achieved thanks to the wider boost of a fixed 12x148 mmbetter support. The frame is designed for internal bowden guidance and allows the chain tensioner to be used. The proven Maestro suspension system provides an almost bottomless lift, is sensitive to terrain inequalities, all without unnecessary bumps.
FRAME | |
Frame: Fork: Silencer: | ALUXX SL Aluminum, stroke 160 mm, Maestro suspension, fixed axle 12x148 mm Boost fixed axle 15x110 mm (Maxle Lite), OverDrive column RockShox Deluxe RT, Trunnion Mount |
COMPONENTS | |
Handlebars: Stem: Sedlovka: Seat: Pedals: | Giant Contact SL DH, 800 x 31.8 mm Truvatively Descendant Giant Contact Switch, telescopic, 30.9 mm Giant Contact Neutral - |
Sorting: Tensioner: Derailleur: Brakes: Brake levers: Cartridge: Chain: Cranks: Center axis: | Shimano SLX, gears 1x11 MRP AMG V2 Shimano SLX Shadow + Shimano Deore, wheels 200/180 mm Shimano Deore Shimano SLX (M7000), 11-46 teeth KMC X-11 Shimano SLX, 32 teeth converter Sram GXP, Press Fit |
Rims: Hubs: Wire: Tires: | Giant P-AM2, tubeless Giant Tracker Boost, fixed axes 15x110 / 12x148 mm, encapsulated bearings, XD walnut Sapim Maxxis Shorty 27.5x2.5 "TR EXO / Maxxis High Roller II 27.5x2.4" TR EXO |
![]() |
