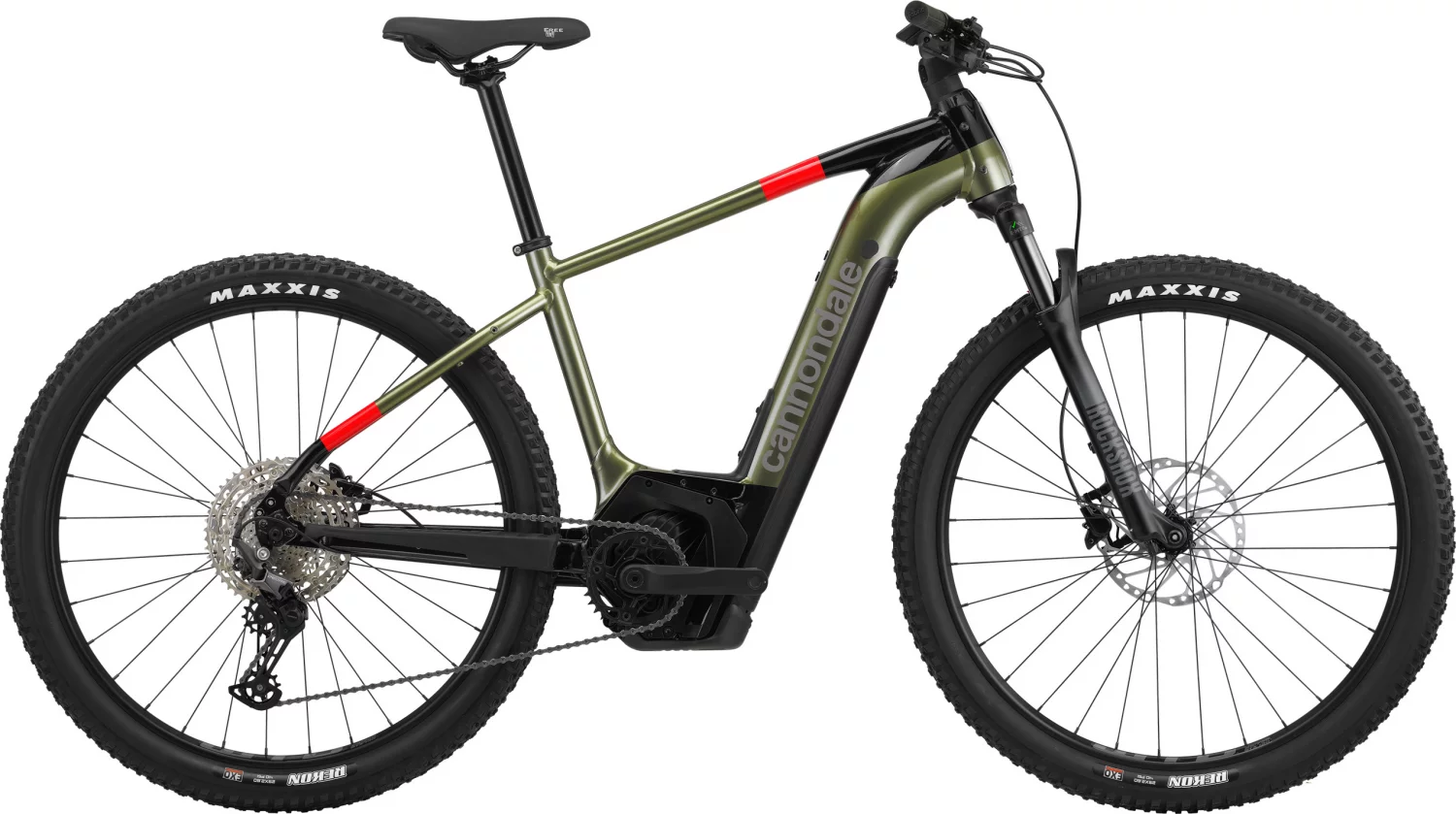

The Cannondale Trail Neo 1 is a modern mountain e-bike equipped with a Bosch Performance Line CX motor (250 W) and a Bosch PowerTube 750 Wh battery, which provides a range of up to 175 km. The SmartForm C1 Alloy frame is designed for optimal stability and agility, with an integrated front light and the option to add a second battery. The RockShox 35 Silver fork with 100 mm of travel and Tektro M807 hydraulic brakes with 4 pistons ensure reliable performance on the terrain. The bike is equipped with a 12-speed Shimano Deore M6100 transmission and Maxxis Rekon Race 29 x 2.6" tires (in sizes M, L, XL) or27.5 x 2.6" (for size S) which are tubeless ready. The Bosch Kiox 300 display and LED remote control make it easy to monitor and control the riding modes. The bike is suitable for a wide range of riders thanks to the different frame and wheel sizes.
Frame: SmartForm C1 Alloy, removable 750Wh battery in the down tube, integrated front light, tapered head tube, internal cable routing, 135mm rear axle with quick release, IS mount for disc brakes, engine protection./> Fork: RockShox 35 Silver, 100 mm travel, spring, 15x110 mm thru axle, tapered steerer, 44 mm offset.
Motor: Bosch Performance Line CX, 250 W.
Battery: Bosch PowerTube, 750 Wh.
Control unit: Bosch Kiox.
Charger: Bosch 4A.
Cranks: FSA for Bosch G4.
Derailleur: Shimano Deore M6100.data-end="623" data-start="620" /> Cassette: Shimano Deore M6100, 10-51 teeth, 12 speeds.
Chain: Shimano Deore M6100, 12 speed.
Gearing: Shimano Deore M6100, 12 speeds.
Brakes: Tektro M807, 4-piston hydraulic disc brakes, TRP 203/203 mm discs.
Brake levers: Tektro M807 hydraulic.
Rims: WTB STX i30, 32 holes, tubeless readyuse.
Hubs: Front Shimano MT400, 15x110 mm thru axle / Rear Shimano MT510, 12x148 mm thru axle.
Spokes: DT Swiss Champion 2.0.
Tires: Maxxis Rekon Race – 29 x 2.6" (sizes M, L, XL) or 27.5 x 2.6" (size S), EXO Protection, tubeless ready.
Handlebars: Cannondale 2 Riser, 6061 alloy, 35 mm diameter, 25 mm stroke, 8° bend angle, 5° rake, 780 mm width.data-end="1339" data-start="1336" /> Stem: Cannondale 2, 3D forged, 6061 alloy, 1-1/8" diameter, 35 mm length, 0° slope, internal cable routing.
Headset: Integrated, 1-1/8" to 1.8", angular contact bearings.
Grips: Fabric Funguy.
Saddle: Fizik Freeway Fit.
Seatpost: Cannondale 4, 6061 alloy, 31.6 mm diameter, 350 mm length.
