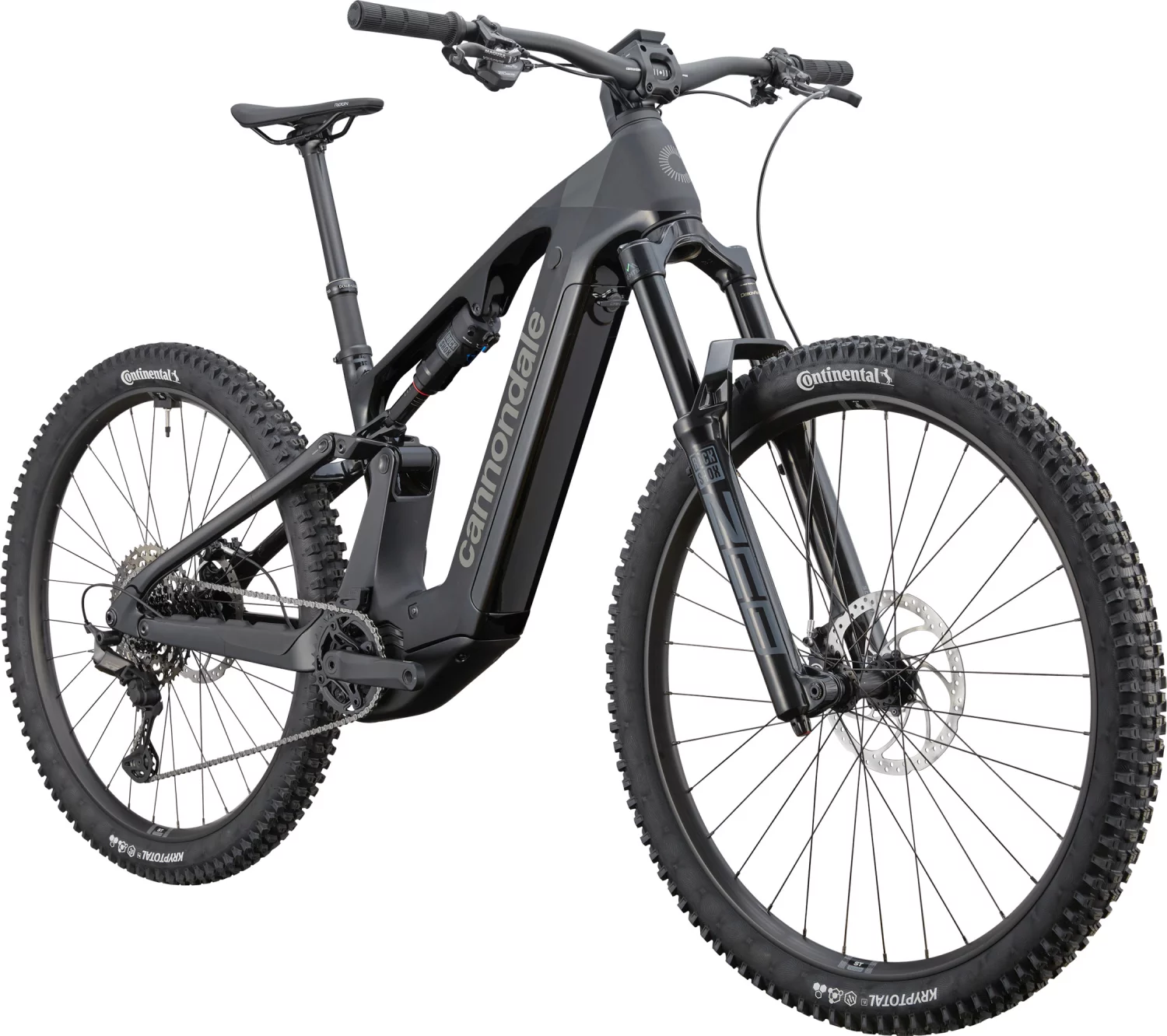

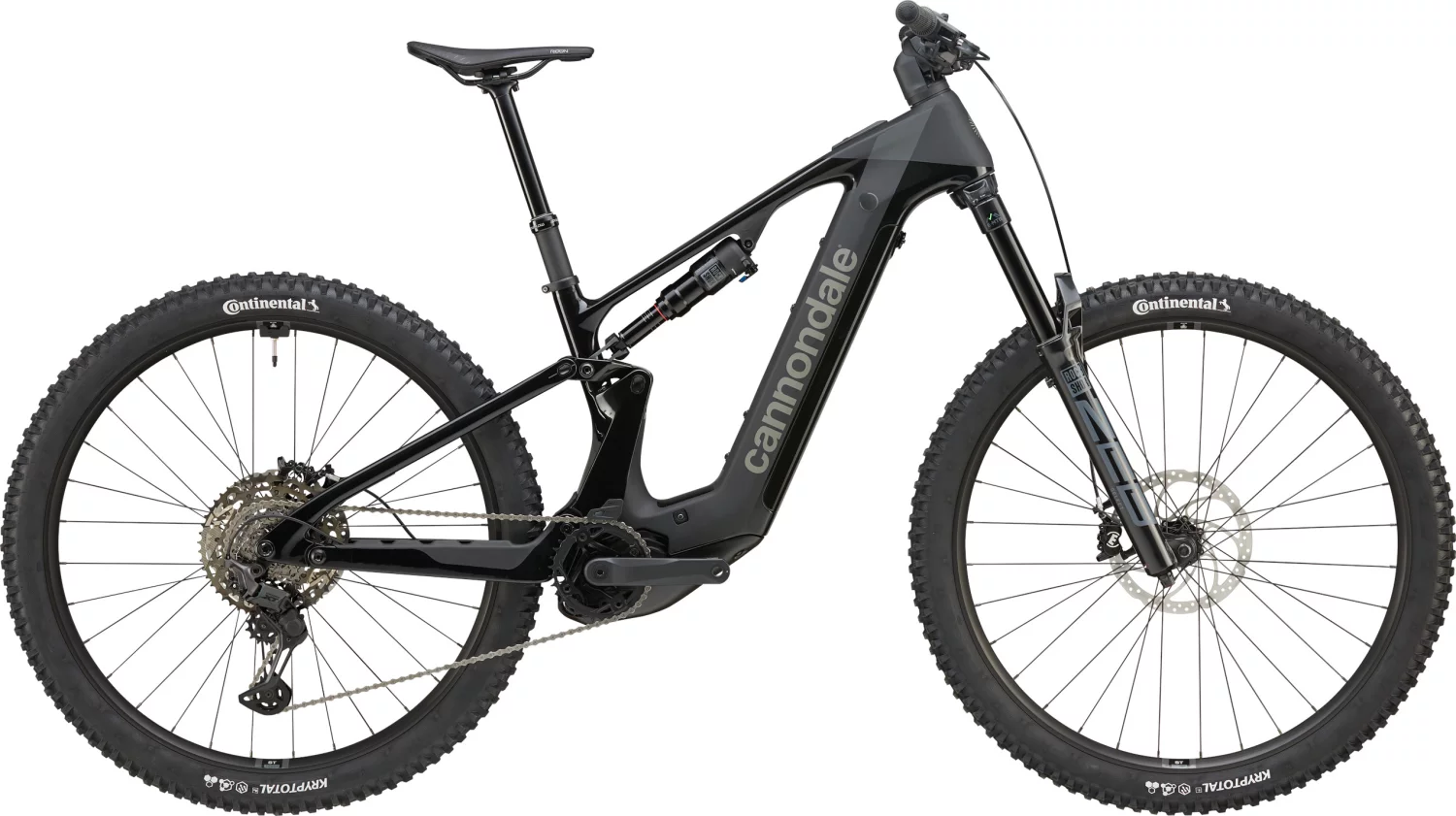

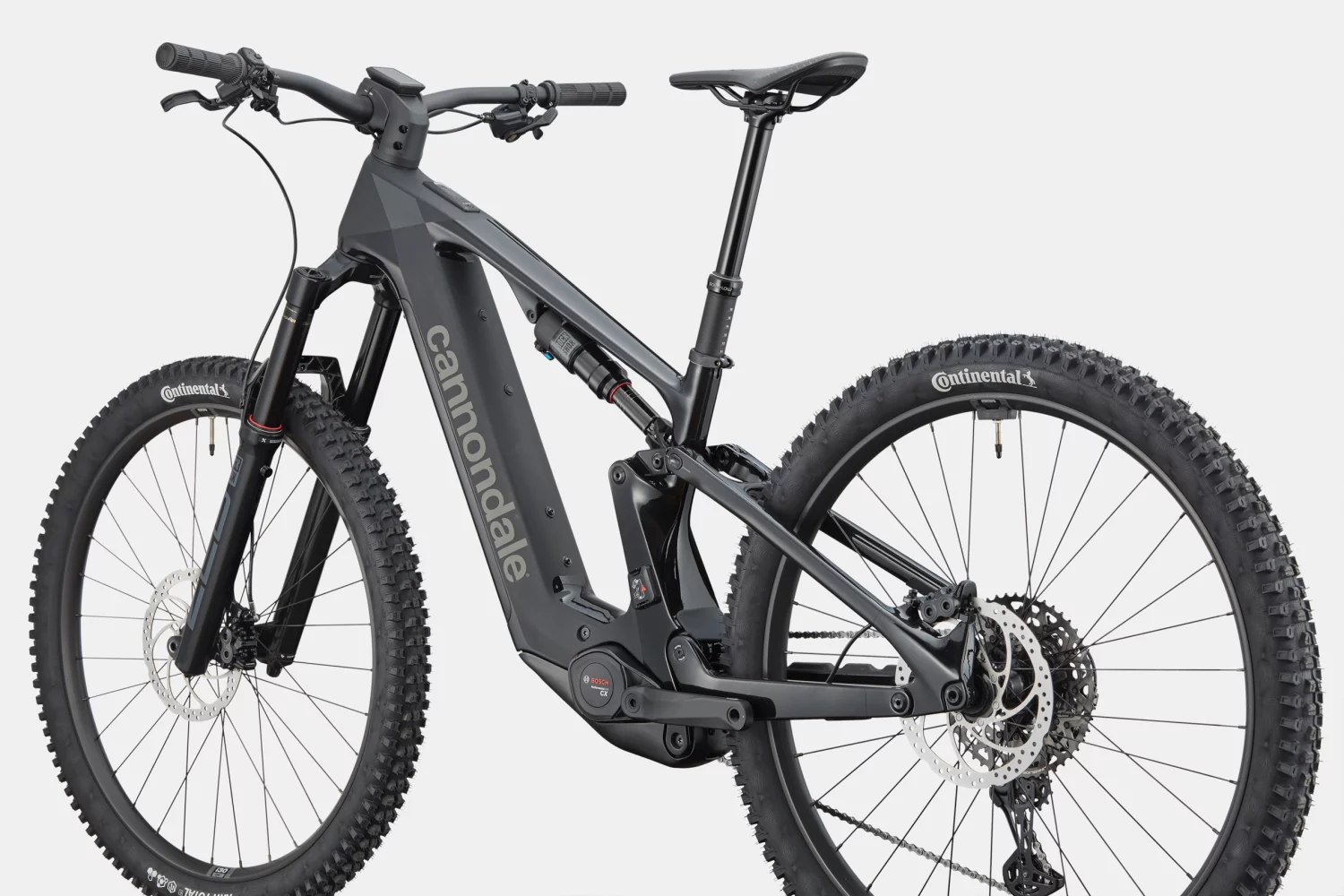

Platform | MOTERRA CARBON 29 G3 |
Frame | Moterra Carbon, 29" wheels, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5� – 1.8� tapered headtube, 40mm two-bolt kickstand compatible |
Silencer | RockShox Deluxe Select+, DebonAir+, 2-Pos mode adjust, adjustable rebound, 230x62.5mm |
Fork | RockShox Zeb Select, 160mm, Charger RC, DebonAir+,15x110mm Maxle, 44mm offset |

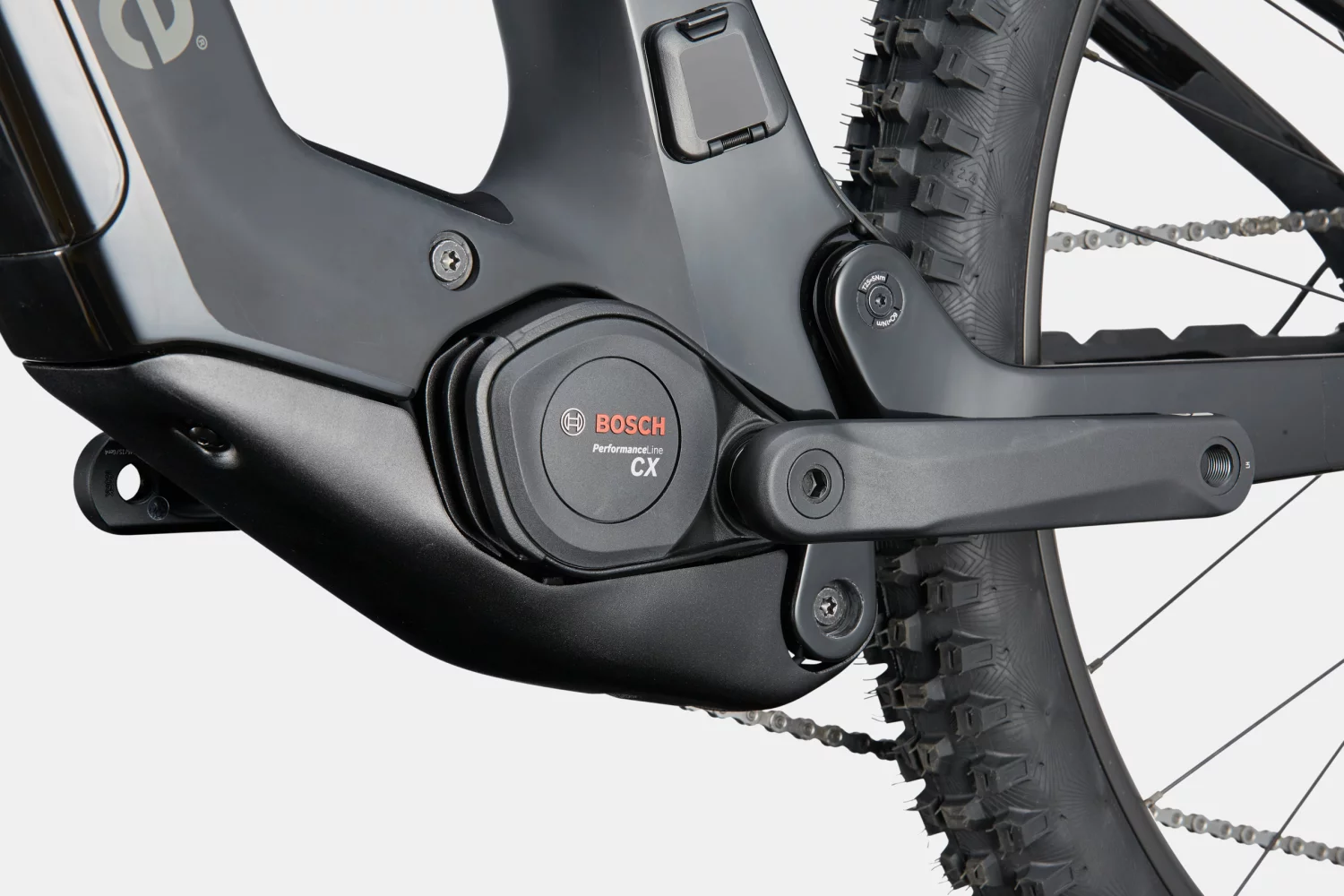

Engine | Bosch Performance Line CX |

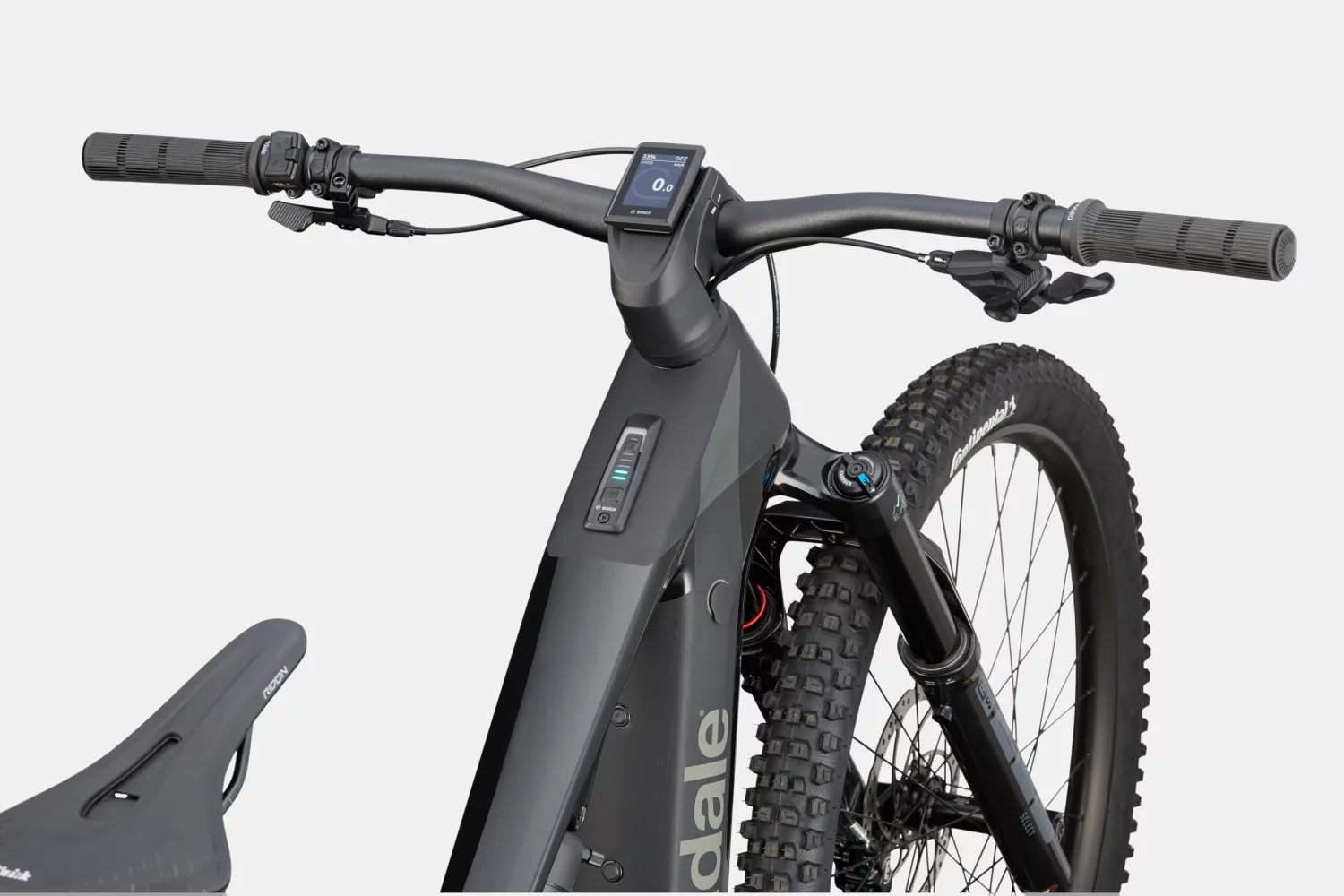

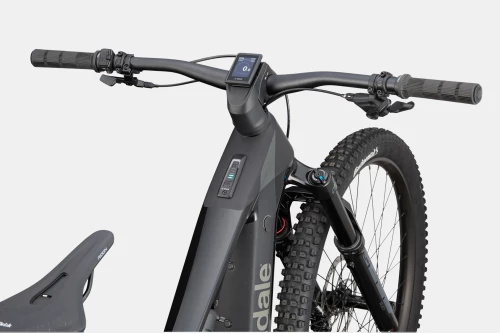

Control unit | Top Tube System Controller w/ Bosch Kiox 300 & Mini Remote |
Battery | Bosch PowerTube, 800Wh |
Charger | Bosch 4A |
Cranks | FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T |

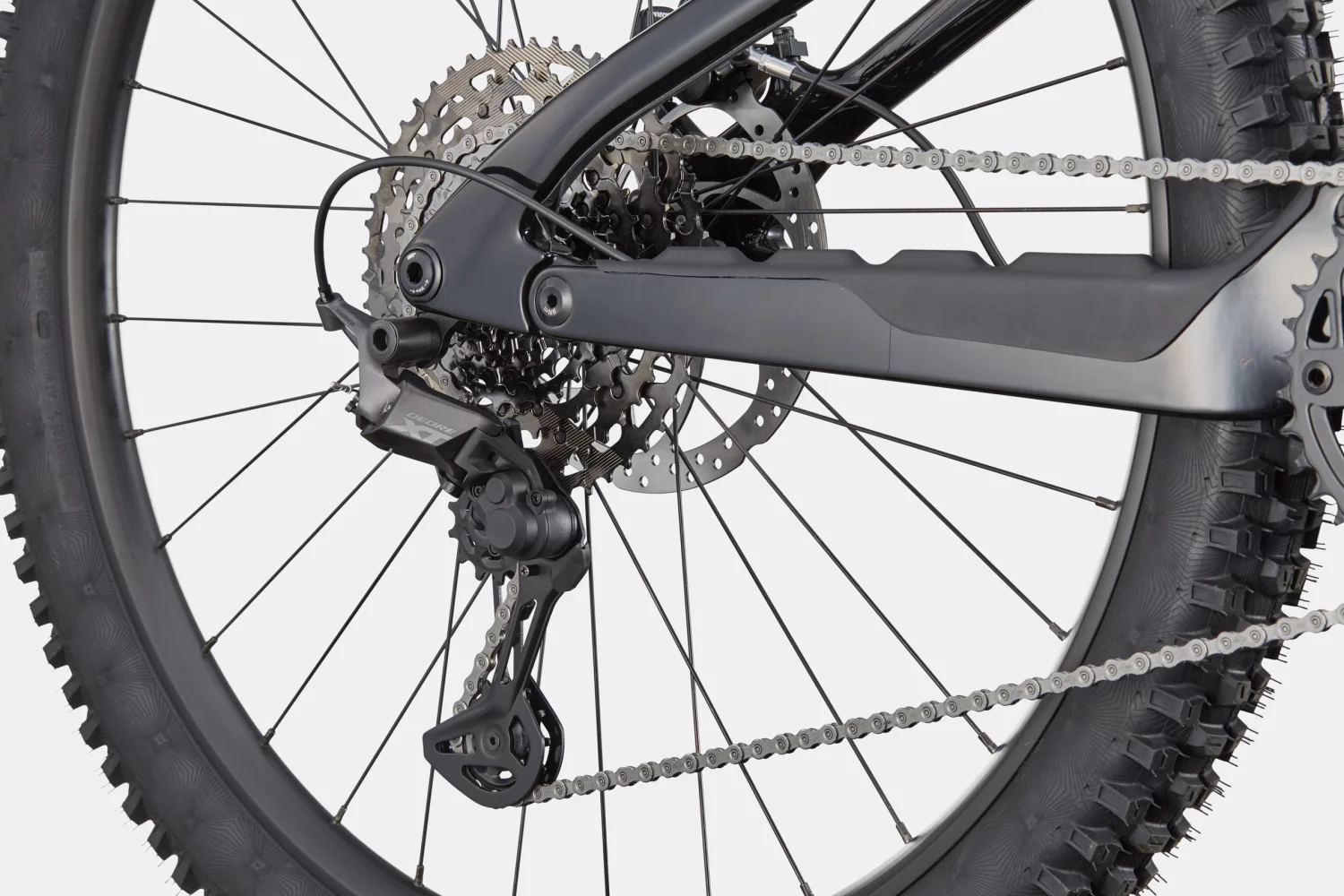

Derailleur | Shimano XT M8130, LinkGlide |
Sorting | Shimano CUES U8000, 11-speed, LinkGlide |
Cartridge | Shimano CUES LG700, LinkGlide, 11-50,11-speed |
Chain | Shimano LG500, LinkGlide, 11-speed |
Rims | WTB ST i30 Tough TCS, 30mm inner width, 32h, tubeless ready |
Tires | (F) Continental Kryptotal-F, 29x2.4", Enduro Soft Black Foldable / (R) Continental Kryptotal-R, 29x2.4", Enduro Soft Black Foldable |
Hubs | (F) Shimano TC500, 15x110mm thru-axle / (R) Shimano TC500, 12x148mm thru-axle, centerlock |
Wires | DT Swiss Champion 2.0 |
Brakes | Magura MT5 4-piston hydraulic disc, 203mm Stormrotors |
Brake levers | Magura MT5 hydraulic disc |
Handlebars | Cannondale 3 riser, 6061 Alloy, 25mm rise, 8° sweep, 4° rise, 800mm |
Stem | Cannondale Trail HeadsUp w/ integrated display mount, 3D Forged 6061 Alloy, 1-1/8", 45mm, 0° |
Grips | Cannondale TaperRidge |
Head composition | Across ICR, 1.5" to 1.8", sealed bearings |
Seat | Fizik Terra Aidon X5, 145mm, Wingflex, S-Alloy Mobius rail |
Seatpost | Cannondale DownLowDropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL) |
Extras | Tubeless Valve Stems, pre-installed front light cable, Bosch PowerMore range extender compatible |
SKUs | C65024U10 |
Color | BBQ |
