| Platform | MOTERRA CARBON 29 G3 |
| Frame | Moterra Carbon, 29" wheels, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5� – 1.8� tapered headtube, 40mm two-bolt kickstand compatible |
| Silencer | Fox Float X Factory, Kashima coating, 2 pos adj, EVOL LV, 230x62.5mm |
| Fork | Fox Float Factory 38, 160mm, GripX2 Damper, Kashima coating, 15x110mmKabolt thru-axle, tapered steerer, 44mm offset |

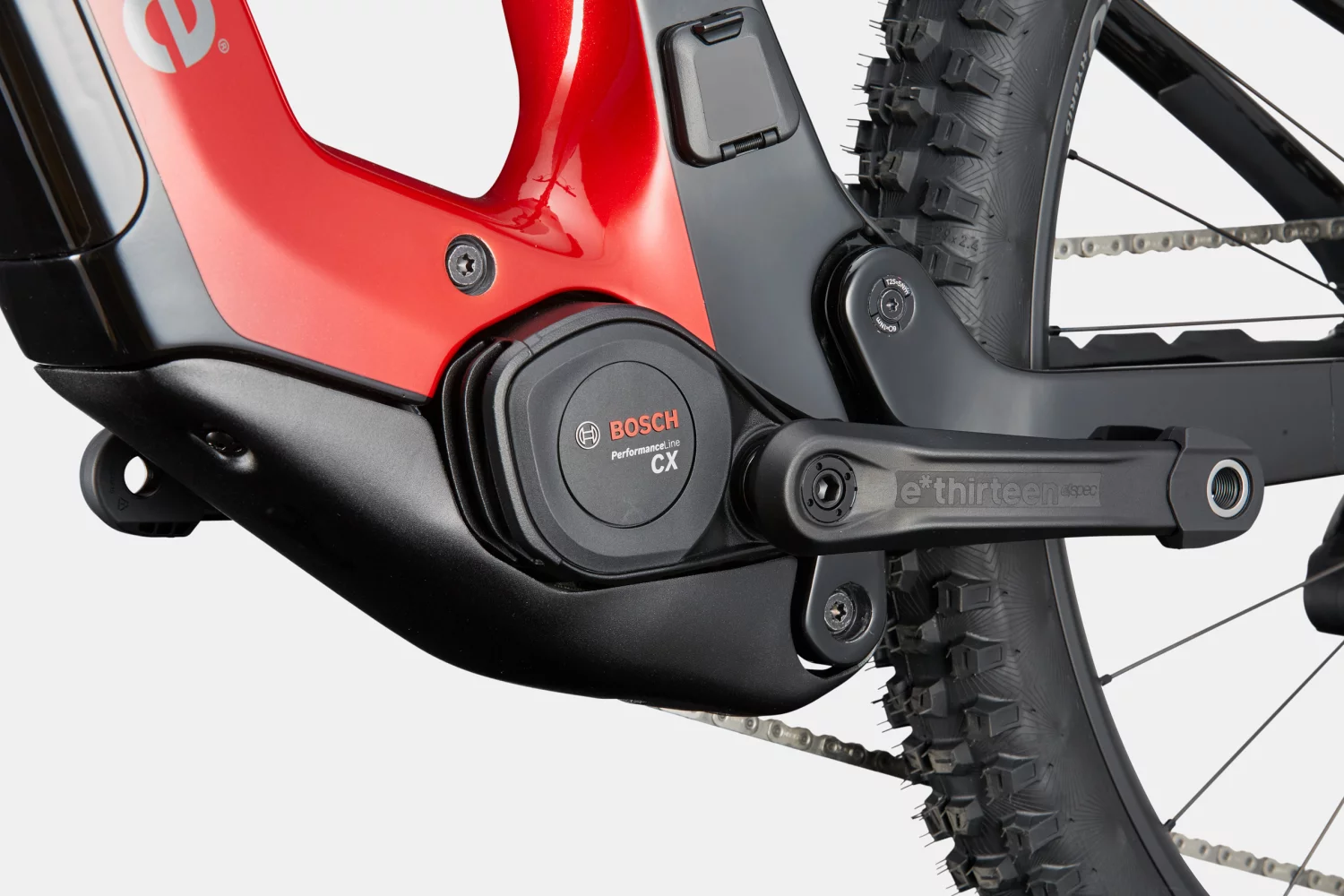

| Engine | Bosch Performance Line CX |

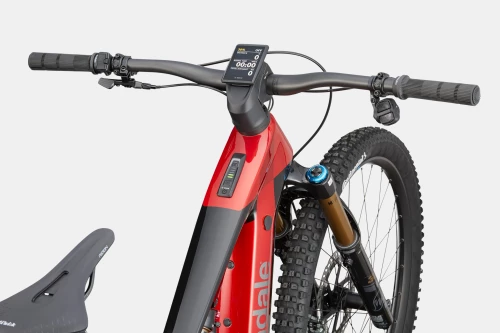

| Control unit | Top Tube System Controller w/ Bosch Kiox 500 & Mini Remote |
| Battery | Bosch PowerTube, 800Wh |
| Charger | Bosch 4A |
| Cranks | e*thirteen e*spec Helix Core, 55mm chainline, 160mm, 34T |
| Derailleur | SRAM XO Eagle AXS, T-Type |
| Sorting | SRAM Eagle AXS T-Type Pod Controller |
| Cartridge | SRAM GX Eagle T-Type, 10-52,12-speed |
| Chain | SRAM GX T-Type, 12-speed |
| Rims | DT Swiss H 1900 Spline, 30mm inner width, TC (tubeless ready) |
| Tires | (F) Continental Kryptotal-F, 29x2.4", Enduro Soft Black Foldable / (R) Continental Kryptotal-R, 29x2.4", Enduro Soft Black Foldable |
| Hubs | (F) DT Swiss 370, 15x110mm thru-axle / (R) DT Swiss 370 Ratchet System 18, 12x148mm thru-axle, 6-bolt |
| Wires | DT Swiss Competition, straight pull |
| Brakes | Magura MT7 4-piston hydraulic disc,220/203mm MDR-P rotors |
| Brake levers | Magura MT7 hydraulic disc |
| Handlebars | HollowGram SAVE riser bar, Carbon, 35mm clamp, 30mm rise, 8° sweep, 5° rise, 780mm |
| Stem | Cannondale Trail HeadsUp w/ integrated display mount, 3D Forged 6061 Alloy, 1-1/8", 45mm, 0° |
| Grips | Cannondale TaperRidge |
| Head composition | Acros ICR, 1.5" to 1.8", sealed bearings |
| Seat | Fizik Terra Aidon X5, 145mm, Wingflex, S-Alloy Mobiusrail |
| Seatpost | Cannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL) |
| Extras | Tubeless Valve Stems, pre-installed front light cable, Bosch PowerMore range extender compatible |
| SKUs | C65014U20 |
| Color | MRD |
