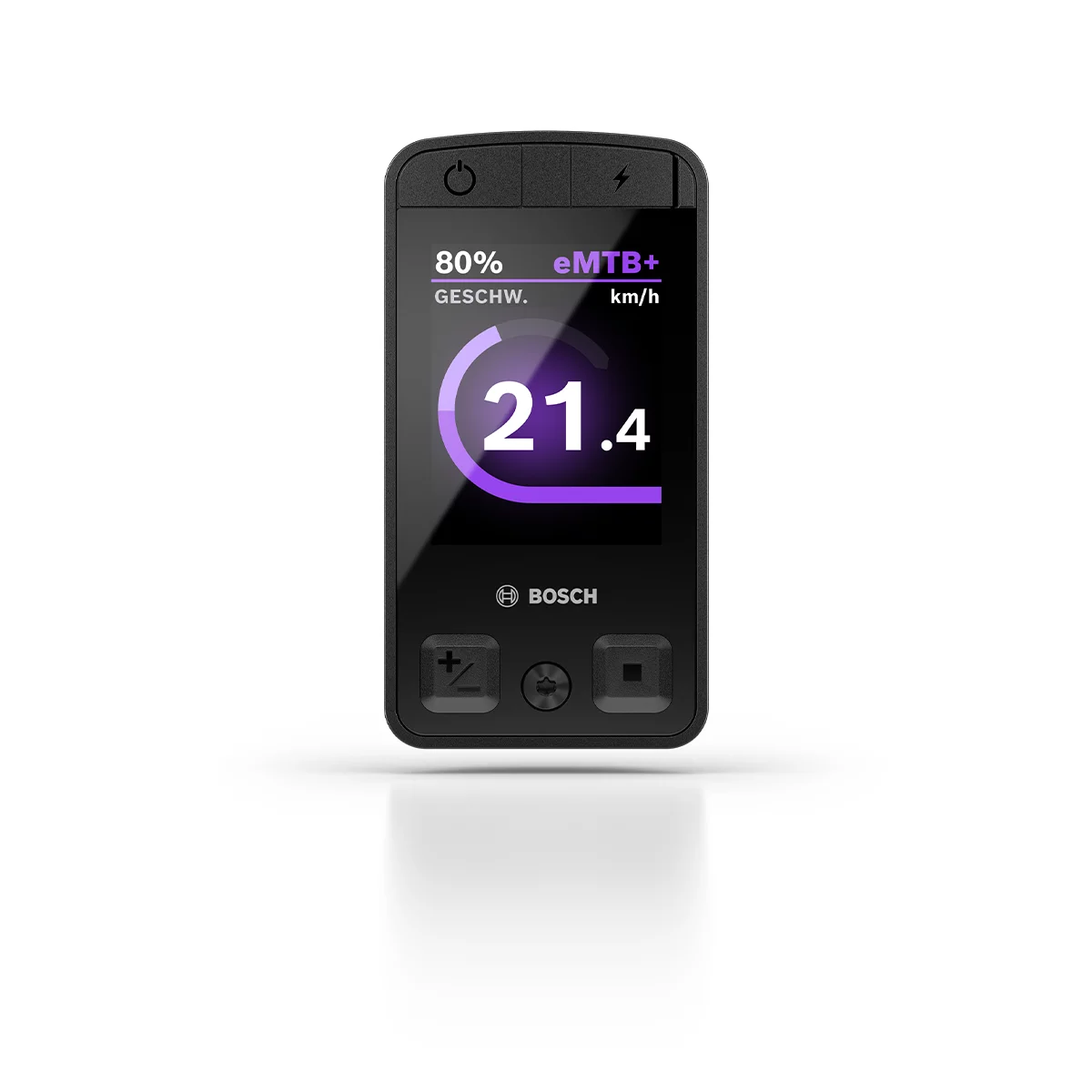

Bosch Kiox 400C

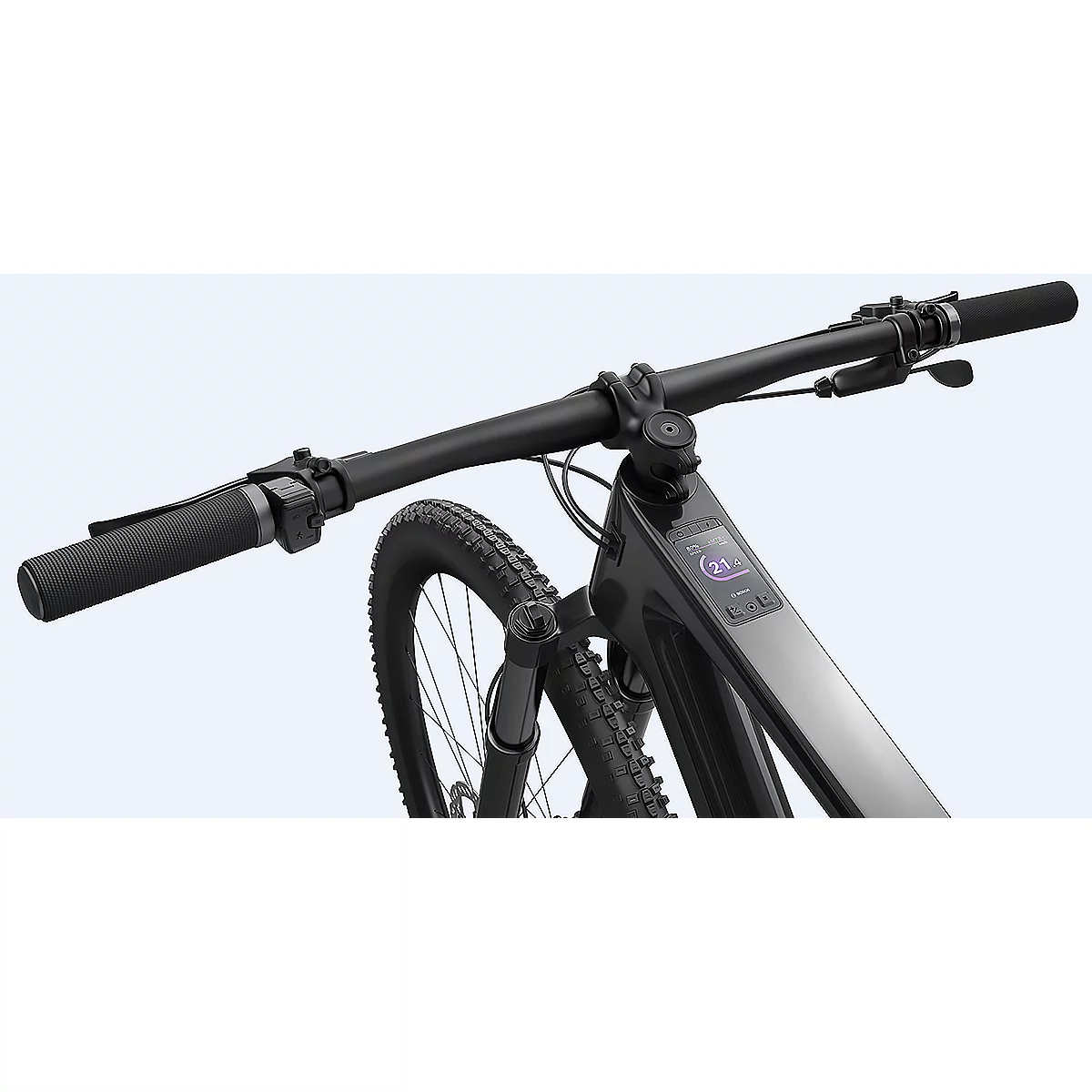

The Kiox 400C is the perfect display for the trail. Inconspicuously integrated into the frame and yet packed with features. It is firmly built into the top tube and is therefore optimally protected from impacts and shocks, even on fast descents.

• Color display size: Diagonal approx. 2.0" / 5.1 cm
• Maximum typical brightness: 1000 cd/m² with brightness control
• Power supply: eBike battery /internal battery
• Possibility to charge external devices via USB-C
• Dynamic display without the need for manual screen switching
• Navigation warning tones
• Display configuration with 30 customization options via the eBike Flow app
• Expandable with Mini Remote for more conveniencecontrol

Package contents:

• 1x Kiox 400C
• 1x screw EB1320009N
• Operating instructions and assembly instructions

The external charging function is not possible in the following cases:

• For all models, the BDU37YY drive unit
• BDU31YY Drive Unit: If the Multi-Purpose Port (MPP) is set as the portHPP (High Power Port), or if a Multi-Purpose Port (MPP) is set as a Light Port and a light with a power of over 6 watts is active*
• For BDU38YY, BDU34YY and BDU33YY power units, if the High Power Port (HPP), Low Power Port (LPP) and Light Port above 6 watts are active at the same time *

* If USB charging is disabled for any of the reasons above, you must restart the e-bike to reactivate the charging function.
